Placing the mouse pointer on the image will launch the image amplifier and you can easily see the extra product detail

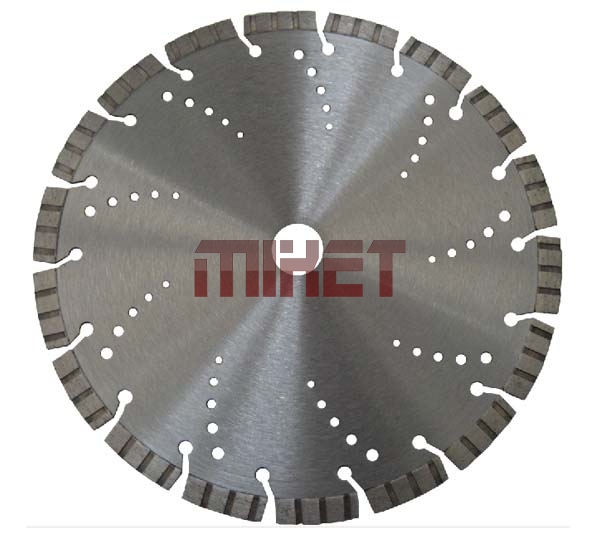

Segmented Slanted Turbo
Diamond Saw Blade
Features: Unique designed segment and slot allow ideal debris removal and cooling. Extremely fast cutting blade.

Application: Tile, bricks, brick blocks, concrete, marble, soft granite, stone and many other materials.

Machinery: Angle grinder, circular saw, masonry saw.

Different specifications are available according to your request.

Item No.
Diameter
Bore
Segment Height
mm
Inch
mm
Inch
(mm)
MT105XT
105
4
22.23-20
7/8-5/8
7 / 10 / 12
MT110XT
110
4-1/4
22.23-20
7/8-5/8
7 / 10 / 12
MT115XT
115
4-1/2
22.23
7/8-5/8
7 / 10 / 12
MT125XT
125
5
22.23
7/8-5/8
7 / 10 / 12
MT150XT
150
6
22.23
7/8-5/8
7 / 10 / 12
MT180XT
180
7
22.23
7/8-5/8
7 / 10 / 12
MT200XT
200
8
25.4-22.23
7/8-5/8
7 / 10 / 12
MT230XT
230
9
22.23
7/8-5/8
7 / 10 / 12
MT250XT
250
10
25.4-22.23
7/8-5/8
7 / 10 / 12
MT300XT
300
12
25.4-20
1-20
7 / 10 / 12
MT350XT
350
14
25.4-20
1-20
7 / 10 / 12
MT400XT
400
16
25.4-20
1-20
7 / 10 / 12
