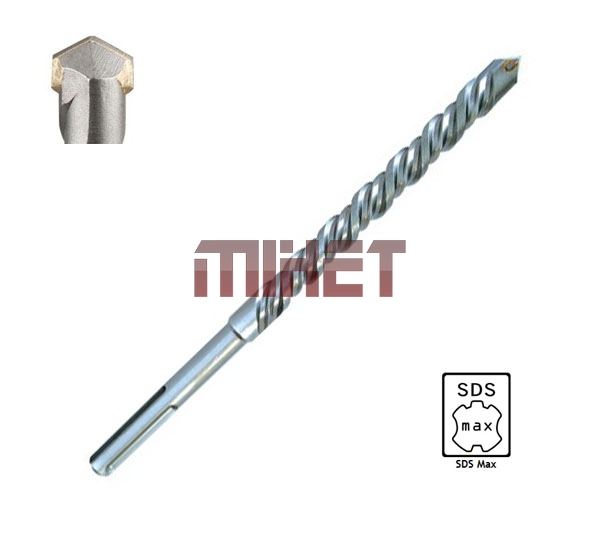

SDS Max Flat Tip
Electric Hammer Drill Bits
Manufacturing Process: Atmosphere controlled hardening, tempering and brazing.

Materials: Good quality steel shanks and the Tungsten Carbide Tips.

Diameter : Ø 10.0mm--- 50.0mm, Total Length: 260-1200mm.

Features:
* Cost effective large diameter drilling.
MIKETs SDS Max flat tip drill bits, provide rapid penetration and a very cost effective method of producing larger diameter holes.
* High tension carbide tips, combined with precision machining, delivers increased strength and extended life.
* Professional blasting and finishing reduces drill fatigue and increases the strength of the bit.
* Double flute geometry of the body gives maximum resistance to extreme torsion levels and maximizes speed and penetration rates.

Application: Ideal for Concrete / Reinforced Concrete / Brick work / Block work / other masonry.

Use only in SDS MAX drive Hammers.

Item No.
Diameter*Length mm
Item No.
Diameter*Length mm
MT010260MF
10*260
MT0251000MF
25*1000
MT010350MF
10*350
MT0251200MF
25*1200
MT012260MF
12*260
MT028350MF
28*350
MT012350MF
12*350
MT028400MF
28*400
MT014260MF
14*260
MT028505MF
28*505
MT014340MF
14*340
MT028540MF
28*540
MT014400MF
14*400
MT028600MF
28*600
MT014505MF
14*505
MT028800MF
28*800
MT014540MF
14*540
MT0281000MF
28*1000
MT014600MF
14*600
MT0281200MF
28*1200
MT016210MF
16*210
MT030350MF
30*350
MT016310MF
16*310
MT030400MF
30*400
MT016400MF
16*400
MT0300505MF
30*505
MT016505MF
16*505
MT030540MF
30*540
MT016540MF
16*540
MT030600MF
30*600
MT016600MF
16*600
MT030800MF
30*800
MT016800MF
16*800
MT0301000MF
30*1000
MT0161000MF
16*1000
MT0301200MF
30*1200
MT018260MF
18*260
MT032350MF
32*350
MT018310MF
18*310
MT032400MF
32*400
MT018350MF
18*350
MT032505MF
32*505
MT018400MF
18*400
MT032600MF
32*600
MT018505MF
18*505
MT032800MF
32*800
MT018540MF
18*540
MT0321000MF
32*1000
MT018600MF
18*600
MT0321200MF
32*1200
MT018800MF
18*800
MT035350MF
35*350
MT0181000MF
18*1000
MT035400MF
35*400
MT020260MF
20*260
MT035505MF
35*505
MT020310MF
20*310
MT035600MF
35*600
MT020340MF
20*340
MT035800MF
35*800
MT020400MF
20*400
MT0351000MF
35*1000
MT020505MF
20*505
MT0351200MF
35*1200
MT020600MF
20*600
MT038400MF
38*400
MT020800MF
20*800
MT038505MF
38*505
MT0201000MF
20*1000
MT038540MF
38*540
MT022260MF
22*260
MT038600MF
38*600
MT022310MF
22*310
MT038800MF
38*800
MT022350MF
22*350
MT0381000MF
38*1000
MT022400MF
22*400
MT0381200MF
38*1200
MT022505MF
22*505
MT040400MF
40*400
MT022540MF
22*540
MT040505MF
40*505
MT022600MF
22*600
MT040540MF
40*540
MT022800MF
22*800
MT040600MF
40*600
MT0221000MF
22*1000
MT040800MF
40*800
MT024260MF
24*260
MT0401000MF
40*1000
MT024310MF
24*310
MT0401200MF
40*1200
MT024350MF
24*350
MT042600MF
42*600
MT024400MF
24*400
MT042800MF
42*800
MT024505MF
24*505
MT0421000MF
42*1000
MT024600MF
24*600
MT0421200MF
42*1200
MT024800MF
24*800
MT045600MF
45*600
MT0241000MF
24*1000
MT045800MF
45*800
MT025260MF
25*260
MT0451000MF
45*1000
MT025310MF
25*310
MT0451200MF
45*1200
MT025350MF
25*350
MT050600MF
50*600
MT025400MF
25*400
MT050800MF
50*800
MT025505MF
25*505
MT0501000MF
50*1000
MT025600MF
25*600
MT0501200MF
50*1200
MT025800MF
25*800
