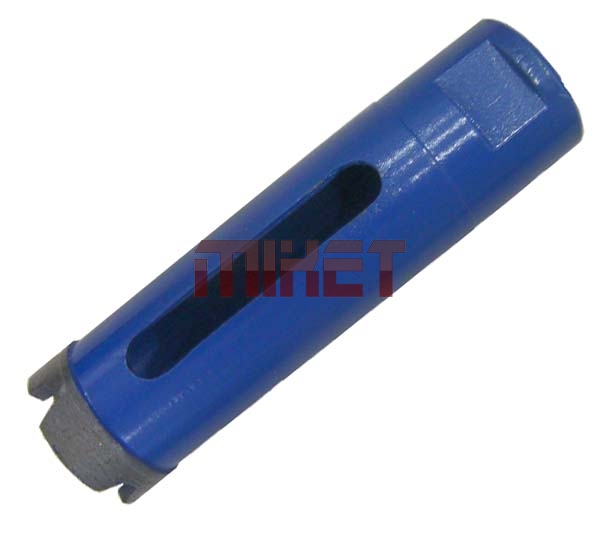

Stone Drilling Diamond Core Drill Bit
Application: Ideal for drilling holes into porcelain tile, ceramic tile, granite, marble, Stone.

Pipe Length: 4 (100mm).

Welding Method: Silver Welding or Laser Welding.

Adaptors: 5/8-11 , M14 , 1/2 Gas.

Used usually on electric hand-held drillers.

Wet or Dry use.

Use water is highly recommended for drilling granite or other hard materials.

Different Bonds are available for wet or dry drilling all kinds of Granite, Marble, Tiles and masonry.

Item No.
Diameter mm/Inch
Segment Size (mm)
MT20CC
20mm (3/4)
17/12x3x10
MT22CC
22mm (7/8)
17/12x3x10
MT25CC
25mm (1)
17/12x3x10
MT29CC
29mm (1-1/8")
17/12x3x10
MT32CC
32mm (1-1/4)
16x3x10
MT35CC
35mm (1-3/8)
16x3x10
MT38CC
38mm (1-1/2)
16x3x10
MT42CC
42mm (1-5/8")
16x3x10
MT45CC
45mm (1-3/4)
16x3x10
MT50CC
50/51mm (2)
16x3x10
MT57CC
57mm (2-1/4)
22x3.5x10
MT60CC
60mm (2-3/8)
22x3.5x10
MT63CC
63mm (2-1/2)
22x3.5x10
MT70CC
70mm (2-3/4)
22x3.5x10
MT76CC
76mm (3)
22x3.5x10
MT80CC
80mm (3-1/8
22x3.5x10
MT89CC
89mm (3-1/2)
22x3.5x10
MT102CC
102mm (4)
22x3.5x10
MT110CC
110mm (4-3/8)
22x3.5x10
MT127CC
127mm (5)
24x4x10
