Placing the mouse pointer on the image will launch the image amplifier and you can easily see the extra product detail

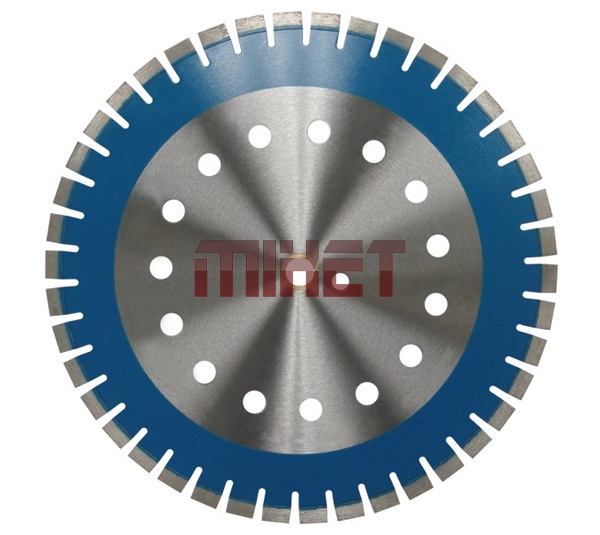

Laser Welded Cured Concrete Diamond Blade with Cooling Holes
This heavy duty laser welded segmented general purpose blade has specially designed bigger cross drilled holes for greater heat dissipation. The unique shorter segment lengths designed allow for more aggressive cutting and gain more life with this quality product.

APPLICATION: Intended for Concrete, Cured Concrete, Reinforced Concrete, Roof Tile, Concrete Pipe, Hard Brick/Block, Pavers, Sandstone, Limestone, Asphalt overlay on Concrete and Masonry Materials.

For High Speed Saw and Up To 35HP Walk Behind Saw.

Item No.
Diameter
Segment Specification (mm)
Arbor
Inch
MM
Width
Height
MTLSC300
12"
300
3.2
12
1"-20mm, 20mm
MTLSC350
14"
350
3.6
12
1"-20mm, 20mm
MTLSC400
16"
400
3.6
12
1"-20mm
MTLSC450
18"
450
3.6
12
1"-20mm
MTLSC500
20"
500
4.2
12
1"-20mm
MTLSC600
24"
600
4.4
12
1"-20mm
