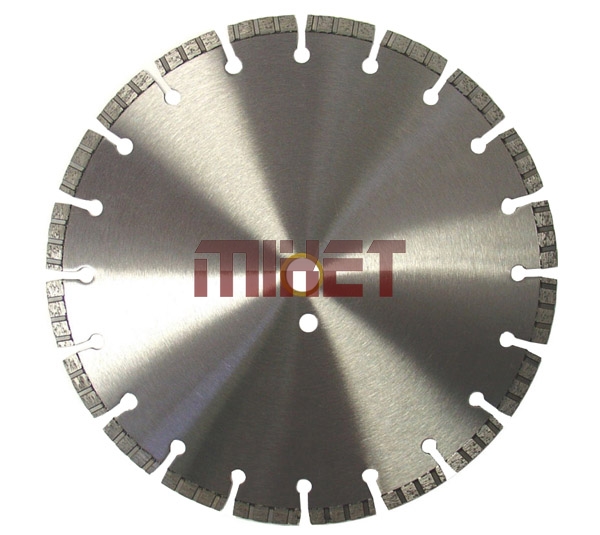

SUPREME Laser Welded Concrete Masonry Diamond Blade
  • Designed for cutting concrete, cured concrete, reinforced concrete, hard brick, pavers, stone....
  • Turbo segmented rim provides excellent cutting speed and long blade life.
  • Laser welded segments for added safety and greater efficiency.
  • It fits most high speed saws and up to 20HP walk behind saws.
  • Job size - small to medium.
  • Use wet or dry.
Item No.
Diameter
Bore
Segment Dimension / mm
Segment Count
Inch
(mm)
(mm)
Length
Height
Thickness
MT300CLB
12"
300
50 / 25.4
40
10 / 15
2.8 /3.0 /3.2
21
MT350CLB
14"
350
50 / 25.4
40
10 / 15
3.2 / 3.5 / 3.8
24
MT400CLB
16"
400
50 / 25.4
40
10 / 15
3.5 / 3.8 / 4.0
28
MT450CLB
18"
450
50 / 25.4
40
10 / 15
3.8 / 4.0 / 4.2
32 / 26
MT500CLB
20"
500
50 / 25.4
40
10 / 15
4.0 / 4.2 / 4.5
30 / 36
MT600CLB
24"
600
50 / 60
40
10 / 15
4.8 / 5.0 / 5.2
36 / 42
MT700CLB
28"
700
50 / 60
40
10 / 15
5.2 / 5.6
40 / 50
MT800CLB
32"
800
50 / 60
40
10 / 15
5.6 / 6.0
46 / 56
MT900CLB
35"
900
50 / 60
24
10 / 15
5.6 / 6.2
64
MT1000CLB
40"
1000
50 / 60
24
10 / 15
6.2 / 6.8
70
