Placing the mouse pointer on the image will launch the image amplifier and you can easily see the extra product detail

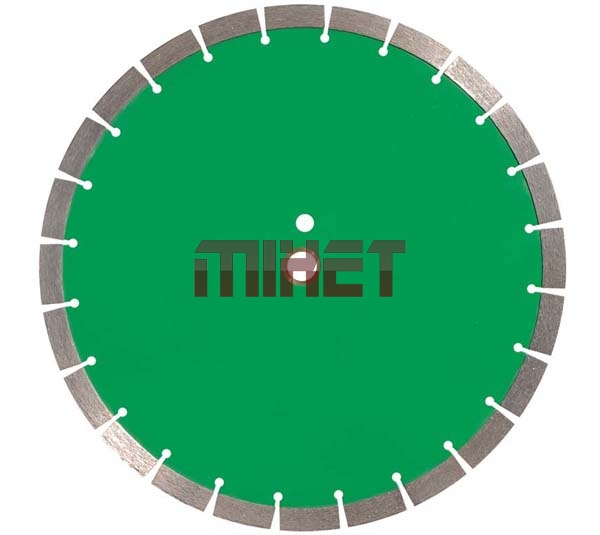

Professional Hydraulic Handsaw Diamond Blade

Application:

High quality laser welded diamond blade for cutting heavily reinforced concrete.

For use with hydraulic hand held machines.

Bore & Bushes:

25.4mm complete with drive pin hole.

Item No.
Diameter
Bore
Segment Specification
Segment Count
MM
Inch
(mm)
MT400HHB
400
16"
25.4
40*4.4*10(15)
24
MT450HHB
450
18"
25.4
40*4.4*10(15)
26
MT500HHB
500
20"
25.4
40*5.0*10(15)
30
