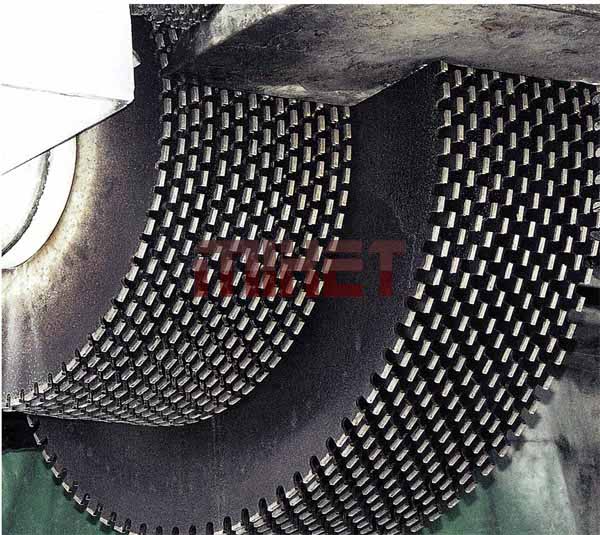

Diamond Multi Saw Blade

Diamond Multi Saw Blades are specially produced with the characteristics of high efficiency, even thickness of slabs and convenient operation.

Dimension Scope: 800mm1600mm.

Characteristics: Very easy cutting without swinging, long lifespan.

20-30pcs same diameter diamond saw blades per machine is suitable for 4 column machine, such as 1200mm Multi-Blades, this is popular out of China specially in Iran market.

10-20pcs different diameter diamond saw blades per machine is suitable for single arm machine, like 5 big 5 small blades together (such as 5pcs 1600mm blades and 5pcs 1000mm blades, all segments specification are same), actually this is popular in China during 2002-2005.

Diameter
Segment Dimension
L W H
Segment Number
On One Blade
Steel Core Thickness
Number of Blades
Using Together
800
24x4.0/4.5/5.0x12/15
66
3.0 or 3.5mm
4 or 5 Difference Diameter Saw Blades
900
24x4.0/4.5/5.0x12/15
64
1000
24x4.0/4.5/5.0x12/15
70
1200
24x4.0/4.5/5.0x12/15
80
1300
24x4.0/4.5/5.0x12/15
88
1400
24x4.0/4.5/5.0x12/15
92
1600
24x4.0/4.5/5.0x12/15
108

The above specification is only for Reference, other or special specification can be ordered by customers.

Wet use only with sufficient water, Fast & Easy cutting, long life, perfect performance.

Warning: Please use high frequency Silver Welded machine to make the brazing, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced (Reduced).

Recommendation: Please put 1.0%-1.5% chemical material (Coolant Material) into the water to increase the cutting speed & life.
